Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

1
2023-12-06

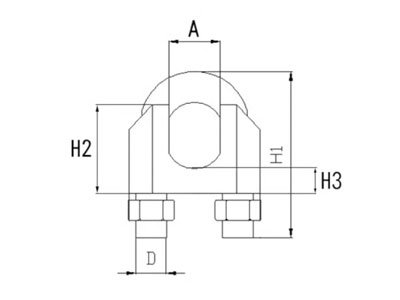

Reference H1 H2 H3 A D Single weight（g）
M2 17.54 8.74 4.1 4.7 2.69 6.6
M3 19.65 8.98 4.51 6.62 3.62 9.7
M4 24.27 9.97 3.94 6.86 3.75 10.5
M5 26.56 10.07 3.57 7.73 4.41 15.8
M6 32.81 10.98 5.35 7.39 5.35 25.7
M8 36.78 14.9 5.41 10.3 5.71 34.8
M10 43.17 15.09 6.16 12.23 7.86 63
M12 52.53 17.8 6.71 14.13 9.84 105.1
M14 57.72 19.68 8.04 14.49 9.55 125.9
M16 64.1 24.82 8.42 17.88 11.1 203.3
M18 70.2 29.61 10.1 20.52 11.69 233.5
M20 77.33 30.72 10.6 20.6 11.84 270.2
M24 96.26 33.14 13.14 28.78 11.55 360
M26 86.66 33.17 11.48 26.95 11.69 349.5
M30 102.4 39.68 15.27 33.84 15.84 619.9
