Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

4
2023-12-07

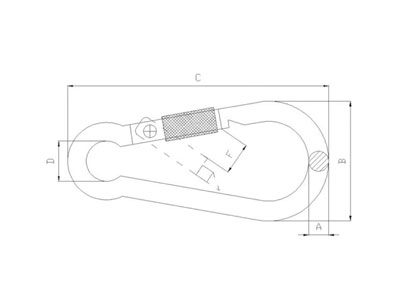

Reference(mm) A B C D F Maximum load(kg)
M5*50 5 25.18 50 8.1 7 45
M6*60 6 28.9 60 9.4 7.8 60
M7*70 7 34.7 70 11.2 8 90
M8*80 8 40.3 80 12 11 110
M9*90 9 44.5 90 13 12 125
M10*100 10 49.5 100 16 12 180
M11*120 11 58 120 18 14 220
M12*140 12 68.5 140 20.3 23 270
