Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

5
2023-12-07

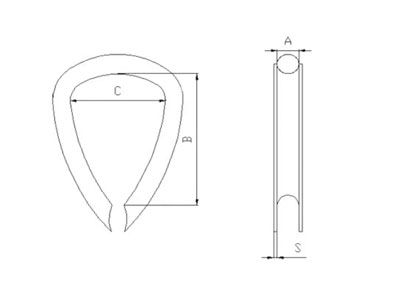

Refereence(mm) A B C S
M2 3 9 7.7 0.8
M3 4.4 14 9.9 0.8
M4 5.3 15 11.8 0.8
M5 6.4 17 13.3 1
M6 6.4 21 16 1
M8 9 30 20 1.5
M10 11.8 36 26 1.5
M12 14 40 26 2
M14 15 50 33 1.9
M16 17 54 39 1.9
M18 19.7 54 40 2.5
M20 21.8 72 43 2.5
M22 23.8 77 43 2.5
M24 25.8 77 49 2.5
M26 27.8 79 53 2.5
