Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

8
2023-12-07

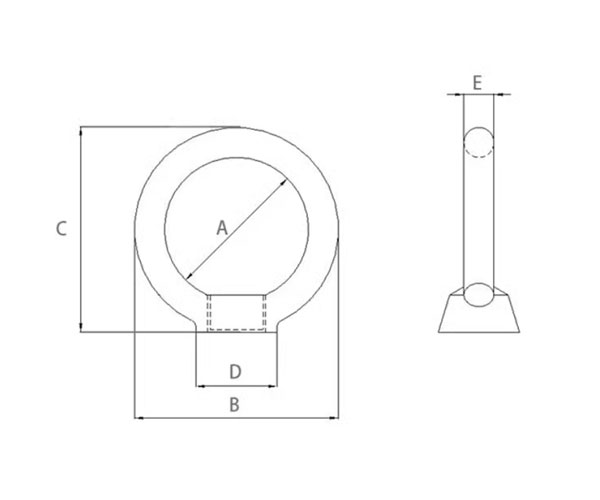

Reference(mm) A B C D E
M5 12.2 22.1 21.7 11.7 4.95
M6 16.4 27 29.6 16 5.36
M8 20.2 34.8 35.2 18.6 7.3
M10 25.6 42.8 43.5 23.3 8.6
M12 30.2 50.8 51 28.4 10.3
M14 30.2 52.6 54.3 28.5 11.2
M16 34.7 59.7 59.3 32.6 12.5
M18 37.1 66.5 66.8 37.4 15.4
M20 40 68.4 66.8 41.6 14.2
M24 50.3 84.9 86 47 17.3
M27 52.9 85 83.8 49 21.7
M30 54.3 103 104 54.6 24

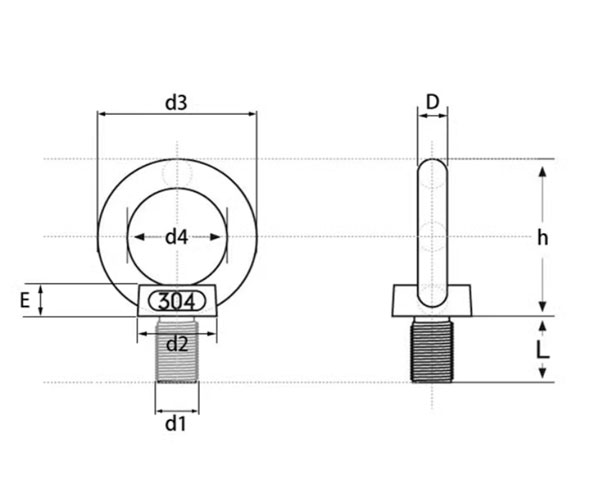

Reference(mm) d1 d2 d3 d4 D h E L Weight(g)
M4 3.5 8.6 18.7 10.8 3.94 19.5 5.05 11.2 6.1
M5 4.8 11.1 22.9 13.4 4.77 23.5 5.7 12.3 11.6
M6 5.66 14.8 27.3 16.4 5.2 29.8 8.04 11.5 20.6
M8 7.8 18.7 34.6 19.4 7.27 33.62 6.63 13 40.2
M10 9.45 22.56 41.6 24.5 8.4 43.3 9.07 17.05 71.6
M12 11.5 27 48.3 28.84 10 50.1 10.5 18 116.7
M14 13.4 27.4 48.2 29.4 10 50.8 11 25.06 133.6
M16 15.5 30.9 56.5 34.2 11.5 58.4 12.5 26.2 195.3
M20 19.4 38.4 69.8 40 14.8 70.8 13.5 33 372.4
