H-groove gate rollers

Location：Home >Products>H-groove gate rollers

H-groove slidiing gate roller with single bearing and eversion side bracket,groove wheel for sliding door.
2022-11-01
  Product description

1.H-groove sliding gate rollers with single bearing and eversion side bracket.

2.45# steel material main body, Q235 steel material bracket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

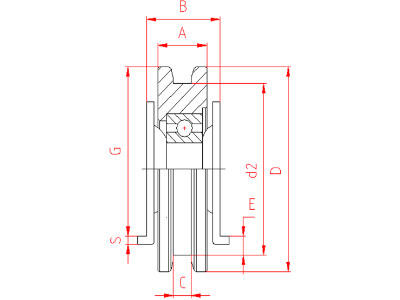

ARTICLE D A B C G S E d2
Reference Ø
 mm
 H mm Ø
513PH 48 13 21 7 39.9 2.5 5.5 42
518PH 48 18 25 7.5 39.5 2.5 3.5 38
618PH 58 18 25 7.5 48.5 2.5 4.5 48
820PH 78 20 30 9 62 3 9.4 64.8
1020PH 98 20 30 10.5 82 3 9.4 84.8
1220PH 117 20 30 10.5 92 3 19 103.8
