H-groove gate rollers

Location:Home >Products>H-groove gate rollers

H-groove sliding gate roller with double bearings and screw,nuts.gate groove wheel,Square tube, i-beam rail pulley.
2022-11-01

  Product description

1.H-groove sliding gate rollers with double bearings and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material double bearing,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

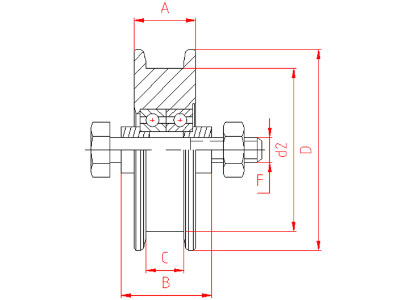

ARTICLE D A B C F d2
Reference
Ø
mm
H UNI Ø

1030H 98 30 44 13.5 M14x70 78
1230H 118 30 44 13.5 M14x70
97
1430H 137 30 44 13.5 M14x70
116
1630H 157 30 44 13.5 M14x70
136
