H-groove slidiing gate rollers with single bearing,Square tube, i-beam rail pulley,steel track groove wheel,gate groove pulley with beaing
2022-11-01

  Product description

1.H-groove sliding gate rollers with single bearing and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material single bearing,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

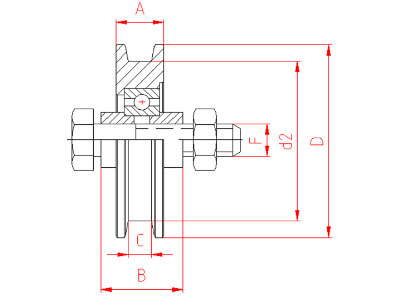

ARTICLE D A B C F d2
Reference Ø
mm
H UNI Ø

518H 48 18 24 7.5 M10x45 39.5
618H 58 18 24 7.5 M10x45
48
718H 68 18 24 9 M12x45
60
820H 78 20 24 9 M12x50
64.8
920H 88 20 24 9 M14x50
74.8
1020H 98 20 34 10.5 M14x60
84.8
1220H 118 20 34 10.5 M14x60
104.8
1620H 157 20 34 10.5 M14x60
143.8
