U-groove sliding gate rollers with single bearing and eversion side bracket,Surface can be galvanized white zinc or yellow zinc.
2022-11-01


    Product description

1.U-groove sliding gate rollers with single bearing and eversion side bracket.

2.45# steel material main body, Q235 steel material bracket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate U-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

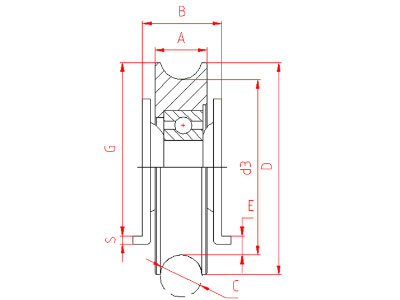

ARTICLE D A B C G S E d3
Reference Ø
mm
R mm
Ø

513PR 48 13 21 10 39.5 2.5 4.5 40
518PR 48 18 25 15 40.5 2.5 4.5 38
618PR 58 18 25 15 48.5 2.5 4.5 48
820PR 78 20 30 15 62 3 11.5 69
1020PR 97 20 30 15 82 3 9 84
1220PR 117 20 30 15 92 3 18.5 103
