U-groove gate rollers

Location：Home >Products>U-groove gate rollers

U-groove sliding gate rollers with double bearings and inside support.Surface can be galvanized white zinc or yellow zinc.
2022-11-01

    Product description

1.U-groove sliding gate rollers with double bearings and inside support.

2.45# steel material main body, Q235 steel material support, bearing steel material double bearings.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate U-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

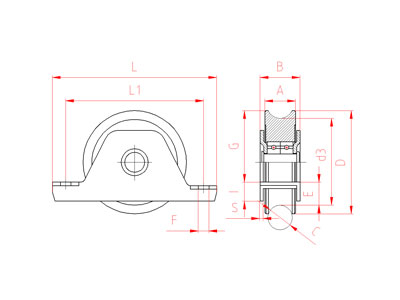

ARTICLE D A B C G I E S d3 F L L1
Reference Ø
 mm
 mm mm
 Ø
 mm
925PSR 88 25 34 21 74.5 16 19 2.5 72 9 140 117.5
925PSR*
 88 25
 32.6
 21
 53 17.5 27 2.5 72 9 139.5 117
1228PSR 117 28 37 21 85 15 21.5 3 97 9 185 155
