U-groove gate rollers

Location：Home >Products>U-groove gate rollers

U-groove sliding gate rollers with single bearing and inside support.Surface can be galvanized white zinc or yellow zinc.
2022-11-01

    Product description

1.U-groove sliding gate rollers with single bearing and inside support.

2.45# steel material main body, Q235 steel material support, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate U-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

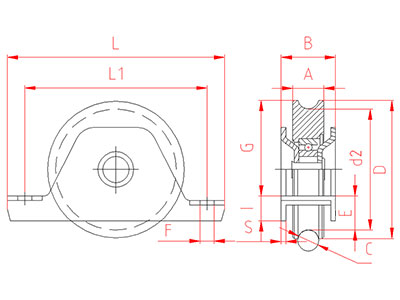

ARTICLE D A B C G I E S d2 F L L1
Reference Ø
 mm
 mm mm
 Ø
 mm
820PSR 78 20 35 17 55.5 16 15 2.5 64 9 140 117.5
920PSR 88 20 35 17 60.5 16 20 2.5 74 9 140 117.5
1020PSR 98 20 35 17 65.5 16 25 2.5 84 9 140 117.5
1220PSR 117 20 35 17 85.5 16 25 3 104 9 160 137.5
1228PSR 117 28 37 21 85 15 21.5 3 97 9 185 155
