U-groove gate rollers

Location：Home >Products>U-groove gate rollers

U-groove sliding gate wheel with single bearing and outer blacket.galvanized white zinc or yellow zinc.
2022-11-01

 Product description

1.U-groove sliding gate rollers with single bearing and outer support.

2.45# steel material main body, Q235 steel material support, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate U-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

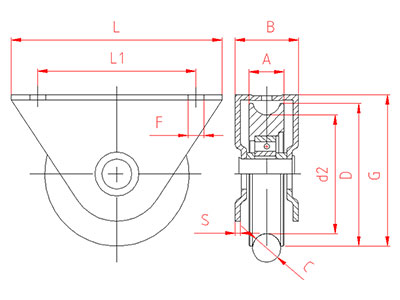

ARTICLE D A B C G S d2 F L L1
Reference Ø
 mm
 R mm
 Ø
 mm
412PCR 38 12 24 4.5 44 2 31 8.5 60 45
517PCR 48 17 25 6.5 59 2 38 8.5 80 65
617PCR 58 17 25 6.5 64 2 48 8.5 80 65
720PCR 68 20 36 8.5 79 3 55 9 120 90
820PCR 78 20 36 8.5 84 3 65 9 120 90
1020PCR 98 20 38 8.5 102 3 85 9 140 108
