U-groove gate rollers

Location:Home >Products>U-groove gate rollers

U-groove sliding gate rollers with double bearings,8.8 degree one screw,two nuts and steel two washers.
2022-11-01

    Product description

1.U-groove sliding gate rollers with double bearings and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material double bearings,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate U-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

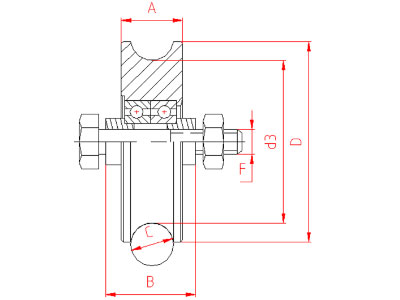

ARTICLE D A B C F d3
Reference Ø
mm
R UNI Ø

830R 78 30 44 21 M14x70 58
1030R 97 30 44 21 M14x70
78
1230R 117 30 44 21 M14x70
97
1430R 137 30 44 21 M14x70
117
1630R 157 30 44 21 M14x70
137
1830R 177 30 44 21 M14x70
157
2030R 197 30 44 21 M14x70
178
