U-groove gate rollers

Location:Home >Products>U-groove gate rollers

U-groove sliding gate roller with single bearing and 8.8 degree one screw,two nuts and steel two washers
2022-11-01

Product description

1.U-groove sliding gate rollers with single bearing and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material single bearing,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate u track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

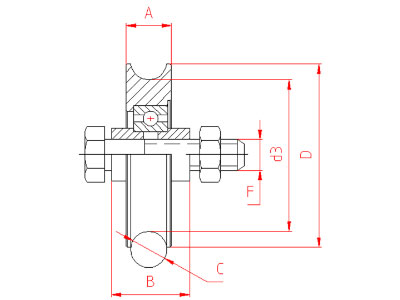

ARTICLE D A B C F d3
Reference Ø
mm
R UNI Ø
512R 48 12 24 8 M10X45 41
617R 58 17 24 12 M10X45 47
618R 58 18 24 12 M10X45 46
718R 68 18 24 12 M10X45 56
820R 78 20 24 16 M12X50 64
920R 87 20 24 16 M12X50 74
1020R 97 20 34 16 M14X60 84
