Y-groove gate rollers

Location：Home >Products>Y-groove gate rollers

Y-groove gate roller with single bearing and eversion side bracket.steel wheel for sliding gate.
2022-11-01
  Product description

1.Y-groove sliding gate rollers with single bearing and eversion side bracket.

2.45# steel material main body, Q235 steel material bracket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

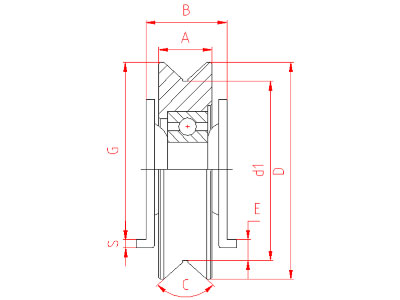

ARTICLE D A B C G S E d1
Reference Ø
 mm
 Y mm
 Ø
513PY 48 13 21 92° 39.5 2.5 5 41
518PY 48 18 25 92°
 40.5 2.5 4 39
618PY 58 18 25 92°
 48.5 2.5 4 47
820PY 78 20 30 92°
 62 3 9.5 65
820PY-P 78 20 30 92°
 61 3 10.5 65
1020PY 97 20 30 92°
 82 3 9.5 85
1220PY 117 20 30 92°
 92 3 18 104
