V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove sliding gate rollers with single bearing and eversion side bracket.steel track groove wheel for sliding gate.galvanized white zinc or yellow
2022-11-02

  Product description

1.V-groove sliding gate rollers with single bearing and eversion side bracket.

2.45# steel material main body, Q235 steel material bracket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

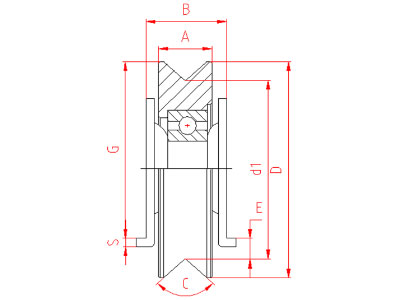

ARTICLE D A B C G S E d1
Reference Ø
 mm
 V mm
 Ø
512PV 48 12 19 92° 39.5 2.5 5 39
517PV 48 17 21 92°
 39.5 2.5 5 38
617PV 58 17 21 92° 50 2.5 3 48
718PV 68 18 30 92°
 59 3 2.5 55
820PV 78 20 30 92°
 64 3 7.5
 65
820PV-P 78 20 30 92°
 61 3 10.5 65
920PV 88 20 30 92°
 69 3 12.5 75
1020PV 98 20 30 92°
 82 3 9.5 85
