V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove sliding gate rollers with Inside support and single bearing.45 steel groove v gate wheel,door pulley with groove.steel track wheel for sliid
1970-01-01

 Product description

1.V-groove sliding gate rollers with single bearing and inside blacket.

2.45# steel material main body, Q235 steel material inside blacket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

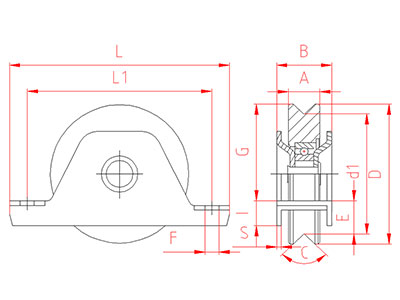

ARTICLE D A B C G I E S d1 F L L1
Reference Ø
 mm
 V mm
 Ø
 mm
517PSV 48 17 28 92° 34 12 9 2 38 9 113 90
617PSV 58 17 28 92°
 39 12 19 2 48 9 140 90
718PSV 68 18 33.5 92° 51 16 10.5 2.5 55 9 140 117.5
820PSV 78 20 33.5 92°
 56 16 15.5 2.5 65 9 140 117.5
920PSV 88 20 33.5 92° 61 16 20.5 2.5 75 9 140 117.5
1020PSV 98 20 33.5 92°
 66 16 25.5 2.5 85 9 140 117.5
1220PSV 117 20 33.5 92° 75.5 16 35 3 104 9 186 151
