V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove sliding gate rollers with double bearing and outer blacket,steel groove wheel for gate,groove gate steel pulley.galvanized white zinc or yell
2022-11-02

 Product description

1.V-groove sliding gate rollers with doule bearings and outer blacket.

2.45# steel material main body, Q235 steel material blacket, bearing steel material double bearings.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

5.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

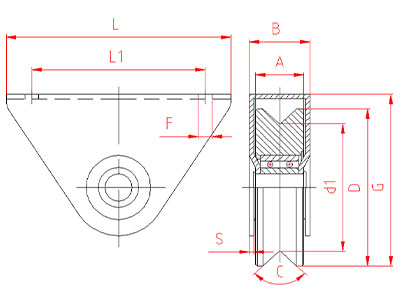

ARTICLE D A B C G S d1 F L L1
Reference Ø
 mm
 V mm
 Ø
 mm
426PCV 38 26 33 92°
 48 2 30 8.5 60 45
526PCV 48 26 33 92°
 57 2 38 8.5 80 65
626PCV 58 26 33 92°
 62 2 48 8.5 80 65
930PCV 88 30 38 92°
 102 3 70 9 140 108
1030PCV 98 30 38 92°
 102 3 80 9 140 108
