V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove gate roller with double bearings,.8 degree one screw,two nuts and steel two washers.groove door wheel,steel track groove pulleys.
2022-11-02

Product description

1.V-groove sliding gate rollers with double bearings and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material bearings,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

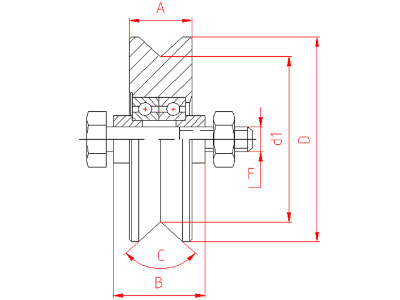

ARTICLE D A B C F d1
Reference Ø
 mm
 V UNI Ø
V426 38 26 31 92° M8X55 55
V526 48 26 34 92°
 M10X55 55
V626 58 26 34 92°
 M10X55 55
V930 88 30 44 92°
 M12X70 70
V1030 98 30 44 92°
 M14X70 70
V1045 98 45 68 92°
 M14X90 90
V1230 117 30 44 92°
 M14X70 70
V1245 117 45 68 92°
 M14X90 90
V1430 137 30 44 92°
 M14X70 70
V1630 157 30 44 92°
 M14X70 70
V1830 177 30 44 92°
 M14X78 78
V2030 197 30 44 92°
 M14X78 78
