V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove sliding gate roller with single bearing and screw,nuts and washers,galvanized zinc groove wheel,v track groove pulleys,roller v groove for sl
2022-11-02

  Product description

1.V-groove sliding gate rollers with single bearing and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material single bearing,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

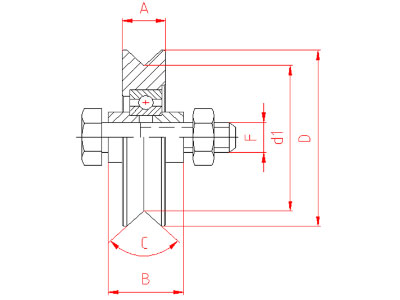

ARTICLE D A B C F d1
Reference Ø mm
 V UNI Ø
V412 38 12 23 92° M8X45 45
V418 38 18 23 92° M8X45 45
V512 48 12 24 92°
 M10X45 45
V517 48 17 24 92°
 M10X45 45
V617 58 17 24 92°
 M10X45 45
V720 68 20 24 92°
 M12X50 50
V820 78 20 24 92°
 M12X50 50
V920 88 20 24 92°
 M12X50 50
V1020 98 20 34 92°
 M14X60 60
V1220 117 20 34 92°
 M14X60 60
V1420 137 20 34 92°
 M14X60 60
V1620 157 20 34 92°
 M14X60 60
V1820 177 20 34 92°
 M14X60 60
