Y-groove gate rollers

Location：Home >Products>Y-groove gate rollers

V-groove sliding gate rollers with outer blacket and double bearings,groove wheel with support,steel track groove pulleys,sliding roller with v groove
2022-11-02


  Product description

1.V-groove sliding gate rollers with doule bearings.

2.45# steel material main body, Q235 steel material blacket, bearing steel material double bearings.

3.Surface can be galvanized white zinc or yellow zinc.

4. CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

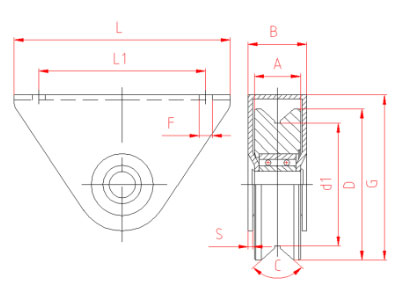

ARTICLE D A B C G S d1 F L L1
Reference Ø
 mm Y mm
 Ø
 mm
930PCY 88 30 38
102 3 70 9 140 108
1030PCY 98 30 38
102 3 80 9 140 108
