Y-groove gate rollers

Location：Home >Products>Y-groove gate rollers

Y-groove sliding gate rollers with outer support,groove door wheel,sliding door pulley,steel door v groove track.
2022-11-02

    Product description

1.Y-groove sliding gate rollers with single bearing.

2.45# steel material main body, Q235 steel material blacket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

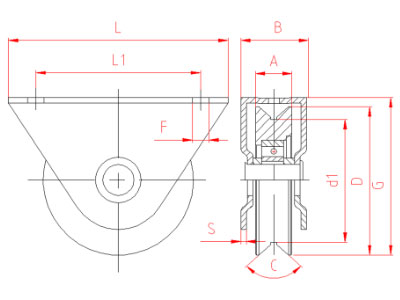

ARTICLE D A B C G S d1 F L L1
Reference Ø
 mm Y mm
 Ø
 mm
517PCY 48  17 25 92° 59 2 38 8.5 80 65
617PCY 58 17 25 92°
 64 2 48 8.5 80 65
718PCY 68 18 36 92°
 79 3 55 9 120 90
820PCY 78 20 36 92°
 84 3 65 9 120 90
920PCY 88 20 38 92°
 102 3 75 9 140 108
1020PCY 98 20 38 92°
 102 3 85 9 140 108
