Products

Y-groove gate rollers

Location:Home >Products>Y-groove gate rollers

sliding gate wheel,v groove steel rollers, steel track rollers with double bearing,8.8 degree one screw,two nuts and steel material two washers.
2022-11-02
  Product description

1.Y-groove sliding gate rollers with double bearings.

2.45# steel material main body, bearing steel material double bearings,8.8 degree one screw,two nuts and steel material two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

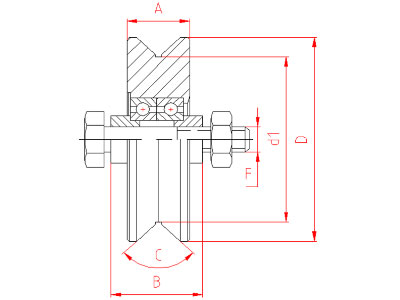

ARTICLE D A B C F d1
Reference Ø
mm
Y UNI Ø

1030Y 97 30 44 92°
M14x70
76
1230Y 117 30 44 92°
M14x70
95
1428Y 137 28 44 92° M14X70 115
1430Y 137 30 44 92°
M14x70
115
1530Y 147 30 44 92° M14X70 125
1830Y 177 30 44 92°
M14x70
155
