Y-groove with bearing steel material single bearing and 8.8 degree screw,nuts and steel washers.
2022-11-02

Product description

1.Y-groove sliding gate rollers with single bearing and screw,nuts and other accessories.

2.45# steel material main body, bearing steel material single bearing,8.8 degree one screw,two nuts and steel two washers.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

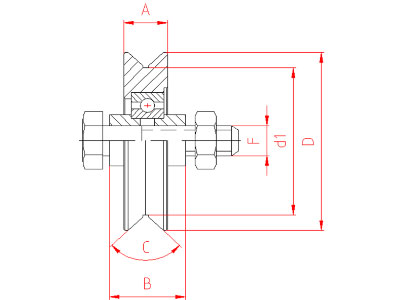

ARTICLE D A B C F d1
Reference Ø
mm
Y UNI Ø

518Y 48 18 24 92° M10x45 37
618Y 58 18 24 92°
M10x45
42
718Y 68 18 24 92°
M10x45
52
720Y 68 20 24 92° M10X45 50
820Y 78 20 24 92°
M12x50
60
1020Y 98 20
34 92°
M14x60
80
1220Y 118 20
34 92°
M14x60
100
