V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove sliding gate rollers with single bearing and outer support.groove door wheel,yellow color v groove gate pulleys.
2023-07-16
  Product description

1.V-groove sliding gate rollers with single bearing.

2.45# steel material main body, Q235 steel material support, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

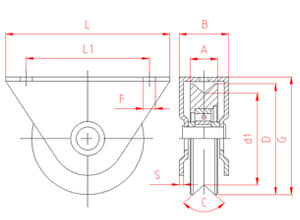

ARTICLE D A B C G S d1 F L L1
Reference Ø
 mm
 V mm
 Ø
 mm
412PCV 38 12 24 92° 44 2 31 8.5 60 45
418PCV 38 18 24 92°
 44 2 31 8.5 60 45
517PCV 48 17 25 92°
 59 2 38 8.5 80 65
617PCV 58 17 25 92°
 64 2 48 8.5 80 65
718PCV 68 18 36 92°
 79 3 55 9 120 90
820PCV
 78 20 36 92°
 84 3 65 9 120 90
920PCV 88 20 38 92°
 102 3 75 9 140 108
1020PCV 98 20 38 92°
 102 3 85 9 140 108
