V-groove gate rollers

Location：Home >Products>V-groove gate rollers

V-groove sliding gate roller wheels with inside support and double bearings,steel gate track pulleys.sliding gate accessories.
2023-07-22

  Product description

1.V-groove sliding gate rollers with double bearings and inside bracket.

2.45# steel material main body, Q235 steel material bracket, bearing steel material double bearings.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate v-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

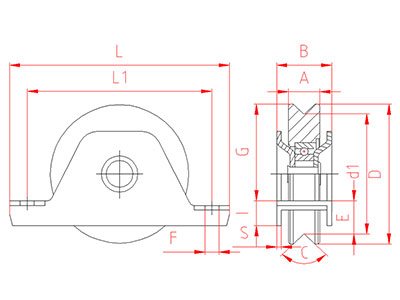

ARTICLE D A B C G I E S d1 F L L1
Reference Ø
 mm
 V mm
 Ø
 mm
1228PSV 117 28 33.5 92°
 85.5 15 22 3 98 9 186 151
1425PSV 137 25 40 92°
 96.5 17 24.5 3 118 11 205 175
1428PSV 137 25 40 92°
 95.5 17 22.5 3 118 11 205 175
1625PSV 157 25 42 92°
 106.5 19 25 3 138 11 195 195
1630PSV 157 30 42 92°
 116.5 20 31 3 138 11 195 195
