Gate upper guide rollers

Location：Home >Products>Gate upper guide rollers

Q235 steel material movable door guide wheel fixing frame,sliding gate gudie rollers with double nylon rollers.
2023-08-02

Product description

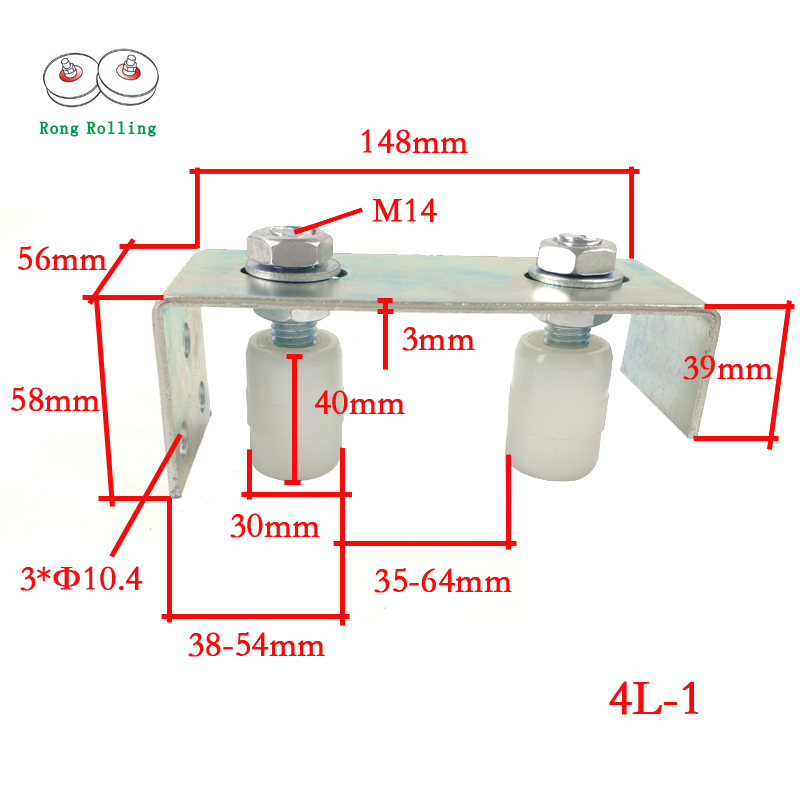

  Sliding gate upper guide rollers with bracket is used to adjust the width of the gate frame of 35-64 mm.Fix it with 3 type M10 expansion screws or direct electric welding.Nylon rollers diameter 30mm,length 40mm with M14X65 screw and steel bushing.Q235 steel material bracket thickness 3mm and has been galvanized blue-white zinc,color zinc,or black electrophoretic paint.
