Gate upper guide rollers

Location：Home >Products>Gate upper guide rollers

Q235 steel material sliding gate upper guide wheels with double m14 screws nylon rollers.
2023-08-02

Product description

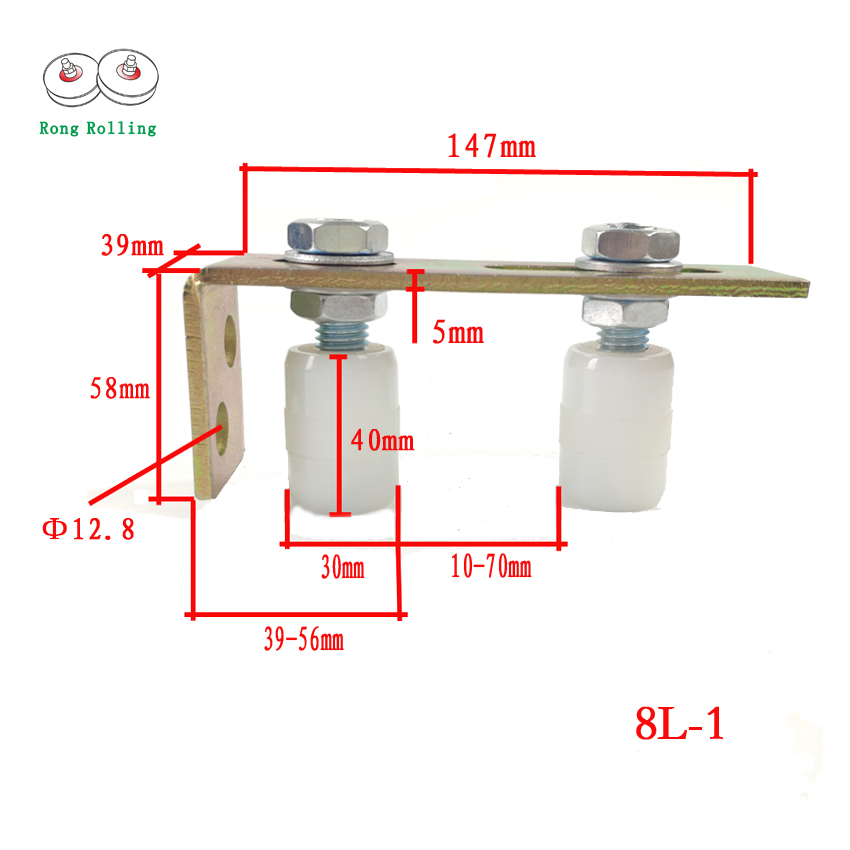

  Sliding gate upper guide rollers with bracket is used to adjust the width of the gate frame of 10-70 mm.Fix it with 2 type M12 expansion screws or direct electric welding.Nylon rollers diameter 30mm,length 40mm with M14X65 screw.Q235 steel material bracket thickness 5mm and has been galvanized blue-white zinc,color zinc,or black electrophoretic paint.
