Gate upper guide rollers

Location：Home >Products>Gate upper guide rollers

201/304 stainless steel material sliding door upper guide wheel bracket with two sets nylon wheels.
2023-08-02


Product description

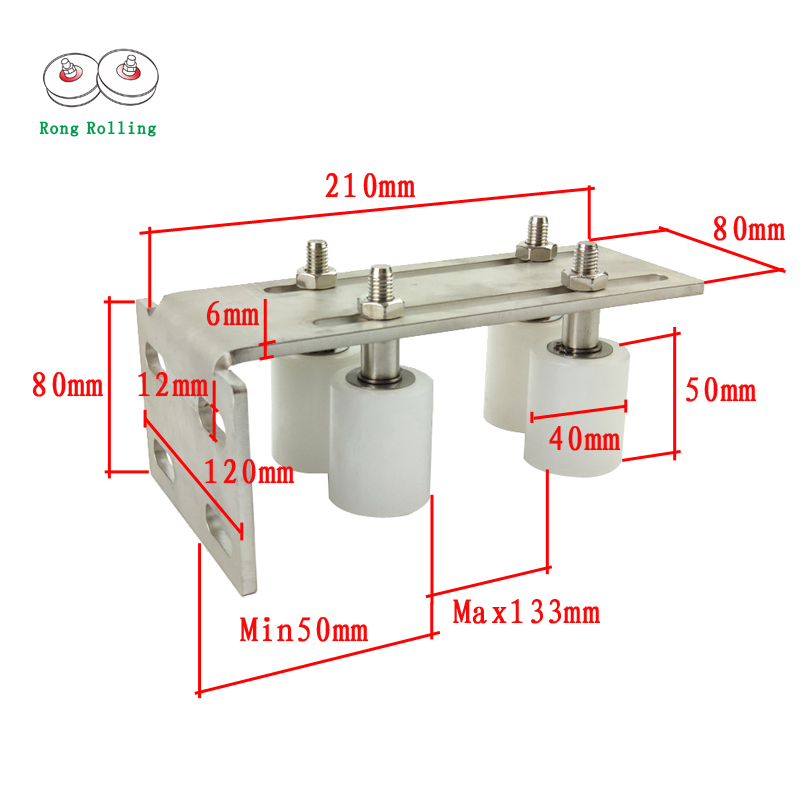

  Sliding gate upper guide rollers with bracket is used to adjust the width of the gate frame of 35-65 mm.Fix it with 3 type M10 expansion screws or direct electric welding.Nylon rollers with steel bushing diameter 30mm,length 40mm with M14X65 screw.Q235 steel material bracket thickness 3mm and has been galvanized blue-white zinc,color zinc,or black electrophoretic paint.
