Gate Hinge

Location：Home >Products>Gate Hinge

Upper parts heavy duty door bearing hinge with rotating plate,45# steel material.
2023-08-08

  Main material with bearing door hinge material 45 # steel, bearing steel single bearing; surface plating blue-white zinc; CNC lathe finish processing; upper and lower parts can be flexible rotation; installed in the door at the upper end; With strong load-bearing, flexible rotation, galvanizing beautiful rust-proof features; according to the drawings or samples, to provide customized services.

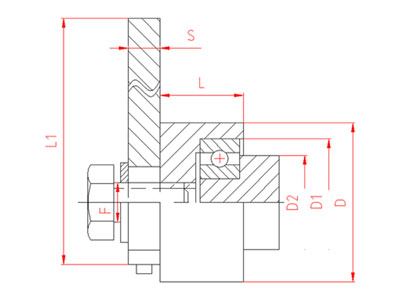

ARTICLE L L1 D D1 D2 S F
Reference mm
 Ø
 mm UNI
MZ1-1 21.5 90 40 32 25 10 M12x20
MZ1-2 23 110 45 35 28 10 M12x20
MZ1-3 24.5 140 65 40 30 10 M12x20
