Number
|

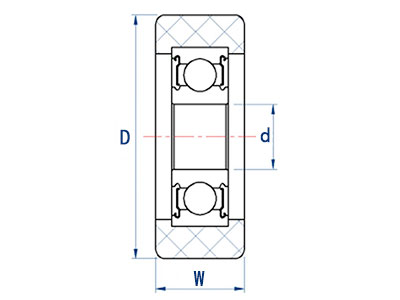

Boundary dimension(mm)
|
Allowable load
|
Material
|
|
I.D
|
O.D
|
Width
|
In bearing
|
|
d
|
D
|
W
|
|
KG
|
|
|
BS68310-3
|
3
|
10
|
3
|
683ZZ
|
3
|
High hardness polyoxymethylene aldehyde
|
BS68312-3
|
3
|
12
|
3
|
683ZZ
|
3
|
High hardness polyoxymethylene aldehyde
|
BS69310-4
|
3
|
10
|
4
|
693ZZ
|
3
|
High hardness polyoxymethylene aldehyde
|
BS69310-5
|
3
|
10
|
5
|
693ZZ
|
3
|
High hardness polyoxymethylene aldehyde
|
BS69312-4
|
3
|
12
|
4
|
693ZZ
|
3
|
High hardness polyoxymethylene aldehyde
|
BS69312-6
|
3
|
12
|
6
|
693ZZ
|
3
|
High hardness polyoxymethylene aldehyde
|
BS62315-4
|
3
|
15
|
4
|
623ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68411-4
|
4
|
11
|
4
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68412-5
|
4
|
12
|
5
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68412-6
|
4
|
12
|
6
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68413-4
|
4
|
13
|
4
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68413-8
|
4
|
13
|
8
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68414-5
|
4
|
14
|
5
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68414-6
|
4
|
14
|
6
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS68414-8
|
4
|
14
|
8
|
684ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS69414-4
|
4
|
14
|
4
|
694ZZ
|
5
|
High hardness polyoxymethylene aldehyde
|
BS60416-5
|
4
|
16
|
5
|
604ZZ
|
10
|
High hardness polyoxymethylene aldehyde
|
BS60416-9
|
4
|
16
|
9
|
604ZZ
|
10
|
High hardness polyoxymethylene aldehyde
|
BS62418-5
|
4
|
18
|
5
|
624ZZ
|
10
|
High hardness polyoxymethylene aldehyde
|
BS62430-5
|
4
|
30
|
5
|
624ZZ
|
10
|
High hardness polyoxymethylene aldehyde
|
BS69516-6
|
5
|
16
|
6
|
695ZZ
|
10
|
High hardness polyoxymethylene aldehyde
|
BS69518-6
|
5
|
18
|
6
|
695ZZ
|
10
|
High hardness polyoxymethylene aldehyde
|
BS69519-4
|
5
|
19
|
4
|
695ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS68517-10
|
5
|
17
|
10
|
685ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS68516-8
|
5
|
16
|
8
|
685ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS60518-5
|
5
|
18
|
5
|
605ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS60519-7
|
5
|
19
|
7
|
605ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS60521-8
|
5
|
21
|
8
|
605ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS62520-6
|
5
|
20
|
6
|
625ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS62522-7
|
5
|
22
|
7
|
625ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS62522-9
|
5
|
22
|
9
|
625ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS62524-5
|
5
|
24
|
5
|
625ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS62524-10
|
5
|
24
|
10
|
625ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS62525-9
|
5
|
25
|
9
|
625ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69618-7
|
6
|
18
|
7
|
696ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69619-5
|
6
|
19
|
5
|
696ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69620-6
|
6
|
20
|
6
|
696ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69620-8
|
6
|
20
|
8
|
696ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69622-7
|
6
|
22
|
7
|
696ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69623-7
|
6
|
23
|
7
|
696ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS60621-8
|
6
|
21
|
8
|
606ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS60622-6
|
6
|
22
|
6
|
606ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS60622-8
|
6
|
22
|
8
|
606ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS60624-6
|
6
|
24
|
6
|
606ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS60624-8
|
6
|
24
|
8
|
606ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS60625-18
|
6
|
25
|
18
|
606ZZ
|
20
|
High hardness polyoxymethylene aldehyde
|
BS62626-8
|
6
|
26
|
8
|
626ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS62626-10
|
6
|
26
|
10
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62626-12
|
6
|
26
|
12
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62628-6
|
6
|
28
|
6
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62628-13
|
6
|
28
|
13
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62630-6
|
6
|
30
|
6
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BSR62630-6R3
|
6
|
30
|
6R3
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62630-9
|
6
|
30
|
9
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62630-10
|
6
|
30
|
10
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62630-12
|
6
|
30
|
12
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62633-7
|
6
|
33
|
7
|
626ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS62635-14
|
6
|
35
|
14
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS62640-10
|
6
|
40
|
10
|
626ZZ
|
40
|
High hardness polyoxymethylene aldehyde
|
BS68822-7
|
8
|
22
|
7
|
688ZZ
|
25
|
High hardness polyoxymethylene aldehyde
|
BS69824-8
|
8
|
24
|
8
|
698ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60824-7
|
8
|
24
|
7
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60826-7
|
8
|
26
|
7
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60826-8
|
8
|
26
|
8
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60828-7
|
8
|
28
|
7
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60828-8
|
8
|
28
|
8
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60828-10
|
8
|
28
|
10
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60830-7
|
8
|
30
|
7
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60830-9
|
8
|
30
|
9
|
608ZZ
|
30
|
High hardness polyoxymethylene aldehyde
|
BS60830-11
|
8
|
30
|
11
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60832-10
|
8
|
32
|
10
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60832-12
|
8
|
32
|
12
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60832-18
|
8
|
32
|
18
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60835-12
|
8
|
35
|
12
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60835-15
|
8
|
35
|
15
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60835-18
|
8
|
35
|
18
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60836-10
|
8
|
36
|
10
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60840-11
|
8
|
40
|
11
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60840-13
|
8
|
40
|
13
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60845-14
|
8
|
45
|
14
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60848-16
|
8
|
48
|
16
|
608ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS62845-8
|
8
|
45
|
8
|
628ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS63835-14
|
8
|
35
|
14
|
638ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS63845-20
|
8
|
45
|
20
|
638ZZ
|
50
|
High hardness polyoxymethylene aldehyde
|
BS60957-10
|
9
|
57
|
10
|
609RS
|
40
|
High hardness polyoxymethylene aldehyde
|
BS600030-10
|
10
|
30
|
10
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS690025.5-8
|
10
|
25.5
|
8
|
6900ZZ
|
55
|
High hardness polyoxymethylene aldehyde
|
BS690026-10
|
10
|
26
|
10
|
6900ZZ
|
55
|
High hardness polyoxymethylene aldehyde
|
BS600030-11
|
10
|
30
|
11
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS600032-10
|
10
|
32
|
10
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS600034-11
|
10
|
34
|
11
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS600035-11
|
10
|
35
|
11
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS600038-10
|
10
|
38
|
10
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS600040-10
|
10
|
40
|
10
|
6000RS
|
55
|
High hardness polyoxymethylene aldehyde
|
BS620035-16
|
10
|
35
|
16
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620036-13
|
10
|
36
|
13
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620036-16
|
10
|
36
|
16
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620040-11
|
10
|
40
|
11
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620040-12
|
10
|
40
|
12
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620042-20
|
10
|
42
|
20
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620050-12
|
10
|
50
|
12
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620050-20
|
10
|
50
|
20
|
6200RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS690128.5-8
|
12
|
28.5
|
8
|
6901RS
|
20
|
High hardness polyoxymethylene aldehyde
|
BS620138-10
|
12
|
38
|
10
|
6201ZZ
|
60
|
High hardness polyoxymethylene aldehyde
|
BS620140-16
|
12
|
40
|
16
|
6201ZZ
|
70
|
High hardness polyoxymethylene aldehyde
|
BS620140-18
|
12
|
40
|
18
|
6201ZZ
|
70
|
High hardness polyoxymethylene aldehyde
|
BS620150-20
|
12
|
50
|
20
|
6201ZZ
|
70
|
High hardness polyoxymethylene aldehyde
|
BS600140-13
|
12
|
40
|
13
|
6001RS
|
70
|
High hardness polyoxymethylene aldehyde
|
BS600145-14
|
12
|
45
|
14
|
6001RS
|
70
|
High hardness polyoxymethylene aldehyde
|
BS630247-13
|
15
|
47
|
13
|
6302
|
70
|
High hardness polyoxymethylene aldehyde
|
BS600240-12
|
15
|
40
|
12
|
6002RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS600245-15
|
15
|
45
|
15
|
6002RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS600250-15
|
15
|
50
|
15
|
6002RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS620242-15
|
15
|
42
|
15
|
6202RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS620243-15
|
15
|
43
|
15
|
6202RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS620248-15
|
15
|
48
|
15
|
6202RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS620255-15
|
15
|
55
|
15
|
6202RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS690340-10
|
17
|
40
|
10
|
6903
|
80
|
High hardness polyoxymethylene aldehyde
|
BS600345-15
|
17
|
45
|
15
|
6003RS
|
80
|
High hardness polyoxymethylene aldehyde
|
BS620350-18
|
17
|
50
|
18
|
6203ZZ
|
90
|
High hardness polyoxymethylene aldehyde
|
BS620350-22
|
17
|
50
|
22
|
6203ZZ
|
90
|
High hardness polyoxymethylene aldehyde
|
BS620360-18
|
17
|
60
|
18
|
6203ZZ
|
90
|
High hardness polyoxymethylene aldehyde
|
BS620384-19
|
17
|
84
|
19
|
6203ZZ
|
90
|
High hardness polyoxymethylene aldehyde
|
BS690450-15
|
20
|
50
|
15
|
6904RS
|
60
|
High hardness polyoxymethylene aldehyde
|
BS600450-12
|
20
|
50
|
12
|
6004RS
|
100
|
High hardness polyoxymethylene aldehyde
|
BS600452-20
|
20
|
52
|
20
|
6004RS
|
90
|
High hardness polyoxymethylene aldehyde
|
BS600453-20
|
20
|
53
|
20
|
6004RS
|
90
|
High hardness polyoxymethylene aldehyde
|
BS600456-20
|
20
|
56
|
20
|
6004RS
|
100
|
High hardness polyoxymethylene aldehyde
|
BS620459-20
|
20
|
59
|
20
|
6204RS
|
100
|
High hardness polyoxymethylene aldehyde
|
BS620465-20
|
20
|
65
|
20
|
6204RS
|
100
|
High hardness polyoxymethylene aldehyde
|
BS620470-25
|
20
|
70
|
25
|
6204RS
|
120
|
High hardness polyoxymethylene aldehyde
|
BS620475-25
|
20
|
75
|
25
|
6204RS
|
120
|
High hardness polyoxymethylene aldehyde
|
BS620480-25
|
20
|
80
|
25
|
6204RS
|
120
|
High hardness polyoxymethylene aldehyde
|
BSGT620480-36
|
20
|
80
|
36
|
6204RS
|
120
|
High hardness polyoxymethylene aldehyde
|
BS620565-19
|
25
|
65
|
19
|
6205RS
|
120
|
High hardness polyoxymethylene aldehyde
|
BS620670-22
|
30
|
70
|
22
|
6206RS
|
120
|
High hardness polyoxymethylene aldehyde
|
BS600788-25
|
35
|
88
|
25
|
6007RS
|
120
|
High hardness polyoxymethylene aldehyde
|
