Nylon Packages Bearing

Location:Home >Products>Nylon Packages Bearing

SPU
2023-08-20


Number

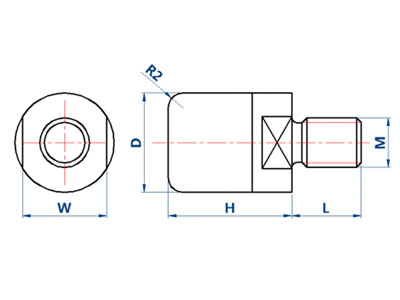

Boundary dimension(mm)
Hardness
Colour
O.D Head length
Screw length
Screw specifications (coarse teeth)
The wrench slot is wide
D H L M W

SPU-D6L4.5M3 6 10 4.5 3 5 90 Dark gray
SPU-D8L6M4
8 12.5 6 4 7 90 Dark gray
SPU-D10L7M5
10 17 7 5 8 90 Dark gray
SPU-D12L10M6
12 18 10 6 10 90 Dark gray
SPU-D16L12M8
16 21 12 8 14 90 Dark gray
SPU-D20L14M10
20 25 14 10 17 90 Dark gray
