H-groove gate rollers

Location：Home >Products>H-groove gate rollers

Sliding gate roller with h groove roller wheel,Square tube pulley, sliding door rail wheel, i-beam groove wheel with outer blacket. 45 steel material.
2023-09-17
  Product description

1.H-groove sliding gate rollers with single bearing.

2.45# steel material main body, Q235 steel material blacket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

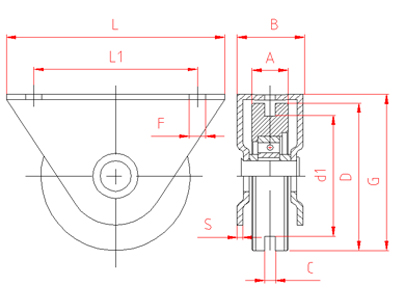

ARTICLE D A C G S d1 F L L1
Reference Ø
 mm H mm
 Ø
 mm
517PCH 48 17 7.5 44 2 38 8.5 80 65
617PCH 58 17 7.5 44 2 48 8.5 80 65
718PCH 68 18 9 59 3 55 9 120 90
820PCH 78 20 9 64 3 65 9 120 90
920PCH 88 20 9 79 3 75 9 140 108
1020PCH 98 20 10.5 84 3 85 9 140 108
