H-groove gate rollers

Location：Home >Products>H-groove gate rollers

sliding gate rollers,Trademark Rong Rolling,45# steel material groove roller for sliding door wheel with inside rollers. Square tube pulley, i-steel
2023-09-17

 Product description

1.H-groove sliding gate rollers with single bearing and inside blacket.

2.45# steel material main body, Q235 steel material inside blacket, bearing steel material single bearing.

3.Surface can be galvanized white zinc or yellow zinc.

4.CNC lathe finishing, punch bending support and riveted with the shaft pin.

5.Together with the sale of rollers matching sliding gate V-track, and gate rack, gate stopper, gate opener, guide rollers, gate latch and other complete sets of gate accessories.

6.Provide customized service according to drawings or samples.

7.China National Trademark:Rong Rolling

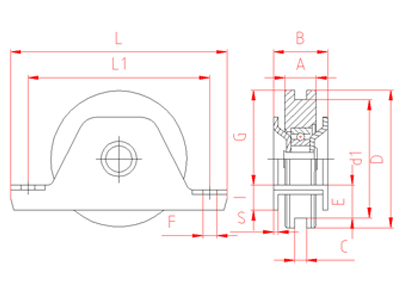

ARTICLE D A B C G I E S d1 F L L1
Reference Ø
 mm
 H mm
 Ø
 mm
517PSH 48 17 28

7.5

34 12 9 2 39.5 9 113 90
617PSH 58 17 28 7.5 39 12 19 2 48 9 140 90
718PSH 68 18 33.5 9 51 16 10.5 2.5 60 9 140 117.5
820PSH 78 20 33.5 9 56 16 15.5 2.5 64.8 9 140 117.5
920PSH 88 20 33.5 9 61 16 20.5 2.5 74.8 9 140 117.5
1020PSH 98 20 33.5 10.5 66 16 20.5 2.5 84.8 9 140 117.5
1220PSH 117 20 33.5 10.5 75.5 16 35 3 104.8 9 186 151
