Gate operators

Location：Home >Products>Gate operators

NEW GSM Gate Opener GPRS 3G Door Opener(RTU5025) Remote Access Control Unit 999

2021-11-03

Product Description

RTU5025 GSM Remote Gate Opener:

The RTU5025 is an upgraded version of famous RTU5015 gate opener, a very simple device which can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID),well used on door access, gate control, remote switching, or car parking systems. Actually the RTU5025 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE phone call from your mobile or fixed line telephone.

PC software for programming via USB,remote server system over TCP/IP supported*,users can easily download the access historical data anywhere anytime.

Digital Inputs:

One Digital input for motion sensor or other sensors to protect your door and windows,SMS alert to owner immediately when triggered;

One Digital input special for secure door and automatically armed when door closed, SMS alert to owner immediately when door opened illegally.

How RTU5025 Works?

1. Put a Mobile SIM Card into the Device.

2. Setting by PC software.(WindowsXP, Win7, Win8)

3.Call the RTU5025 by Authorized phone number, Relay Switch ON/OFF to remote control the Gate/Door or other Machine OPEN/CLOSE!

4. Download the access historical data by PC software via USB port.

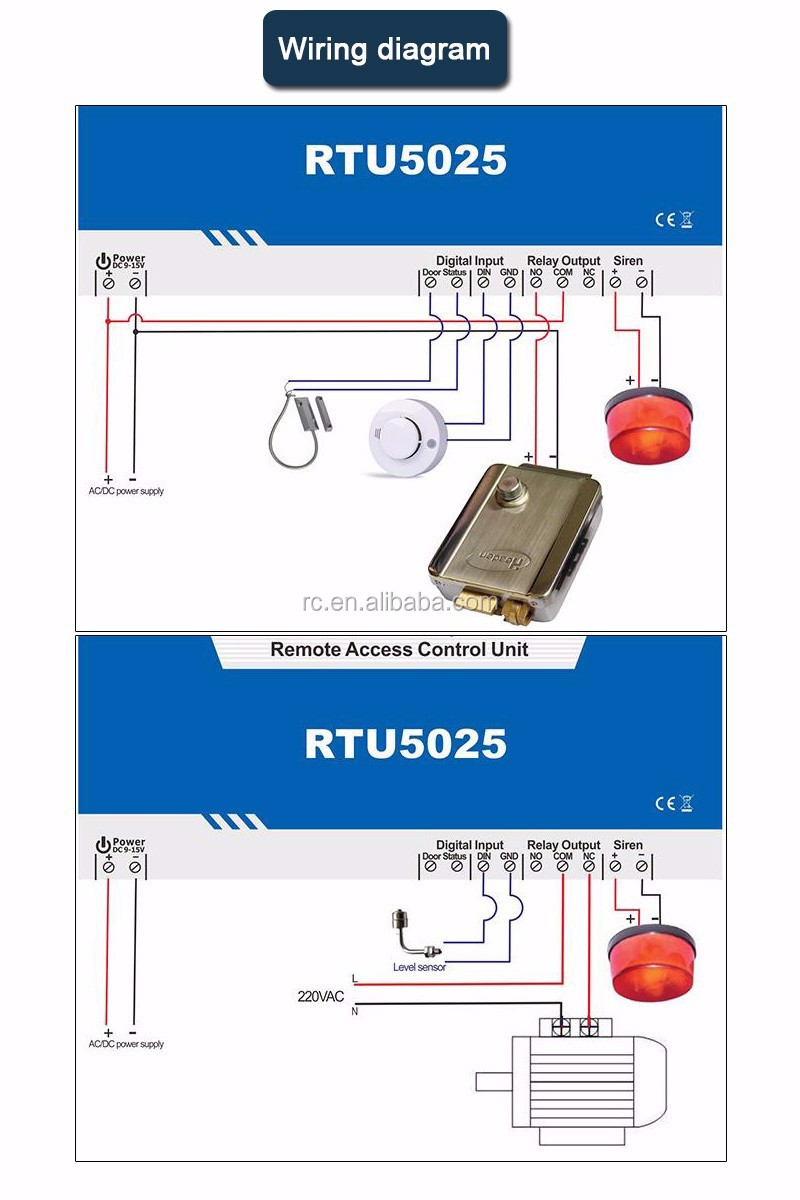

Door status checking alarm and remote control:

1.Connect wired detector/sensors in tothe DIN1/2.

2.When detector/Sensors trigger,RTU5025 send Alarm SMS Text to the 1st ~6th users automatically.

3.According to the Alarm SMS, users make a decision to CALL RTU5025 Switch Relay ON or OFF.

GSM Gate Opener RTU5025 well used for:

Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call.

Intrusion security alarm,remote ON/OFF motors, lights, pumps,generators,valves and machines.

Home and garage owner, Business company, Hotel, Warehouse, Parking place, Hospital, And other place need remote switching ON/OFF applications. eg. Pump, Motor, Valve, or any need NC/NO contact devices.

Specification

Name: GSM Gate Opener

GSM frequency: 850/900/1800/1900MHz

2G frequency: 900/2100MHz 850/1900MHz

Digita Input: 2 inputs, one for access control

Digital Output: 1 Relay, 3A/240VAC

Siren output: 12VDC / 1A

Power supply range: 9 ~ 24VDC / 2A

Working power: 12V input, max current 50MA

SIM Card: Supporting 3V SIM Card

GSM antenna: 50Ω SMA antenna connector

Temperature range: -20 ~ +60 °C

Relative humidity: 10 ~ 90%

Backup battery 3.7V/900mAH

Size: W130 x D74x H27 mm

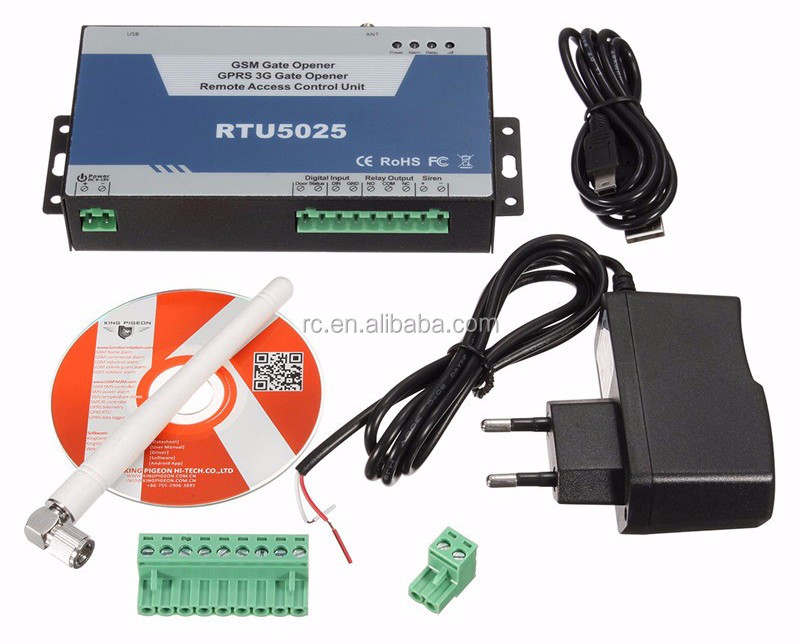

Package included

1x main panel+ 1x GSM antenna+ 1x setup software CD+ 1x power adapter + 1x USB cable

Packaging & Delivery
Packaging：1 pce/ctn(18cm x 16cm x 16cm)
Delivery: 20-30 days

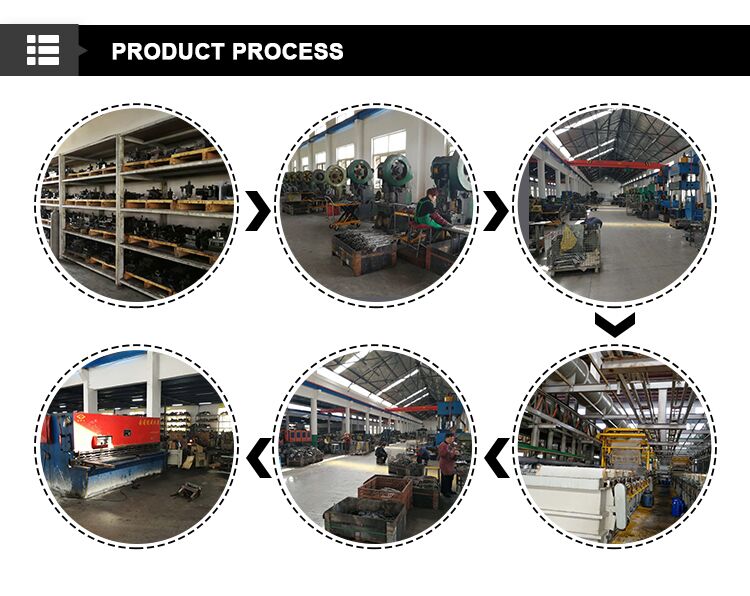

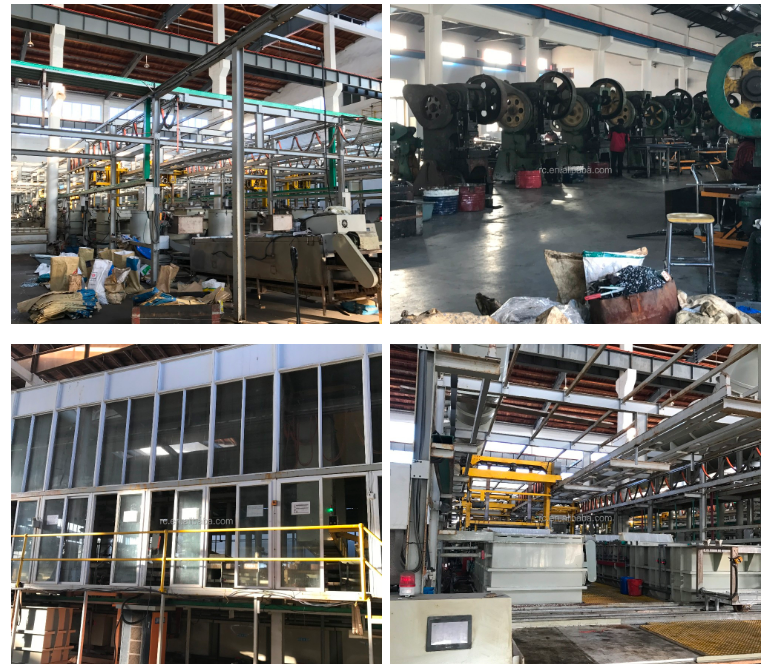

Our Company
Our company is a professional machining and stamping factory for gate or window accessories,established in 1996,with 120 staffs now. Our major product are metal components including stamping parts,all kinds of machining.Such as sliding gate roller Groove V,R,Y,H,hanging wheels,nylon wheel,all kinds of track,cantilever gate roller,gate stopper,welding or adjustable hinges.....

Our Service
All our customer service people are fluent in English; they will take good care of your requirements and transfer all the technical drawings and specifications. we can arrange shipment from Shanghai Port or Nantong Port to your designated portor or send directly the goods to customers' warehouse in Shanghai.
It is always our goal to provide satisfactory services to customers with reasonable price, high quality product, accurate delivery time and all necessary assistance. We look forward to hearing from you and growing together with you.
we are in sliding wheel making more than 25 yes a factory.
we are the quality supplier of alibaba for 13 years.
we are running aliexpress at the same time.
The web address is :
https://rongrolling.aliexpress.com/store/613694?spm=2114.search0104.3.82.2567c9c7rDSWTm
well received the following:

FAQ
Q:How To Order With "RongRolling" Sliding Gate Parts
A:"RongRolling" is brand name of sliding gate wheels of Nantong RongChang Manufacture&Trading Co., LTd. When you order us we need you to provide us detailed size. Diameter of wheels or drawings.
You should tell us what kind of grade you need.
On usual we provide new samples need 10working days by OEM item
For 10000pcs we need 20 working days to produce one item
we accept T/T L/C and D/A D/p payment term
Q:How About Rongrolling Sliding Gate Wheel
A:Sliding gate wheels are integral features of your outdoor hardware, and at Barrier Components we sell this products in more than 30 alternative size, Our entire range of sliding gate wheels are galvanized and sold with sealed for life bearing guaranteeing their longevity and performance over a sustained period of time. These products also come equipped with various types of internal support brackets including U and V shaped grooves alongside round grooves.
Q:How To Choose Right Wheels For Your Gate
A:Sliding wheels come in several grade.
The highest grade is heat treated C45 steel with dual bearing. This kind wheels is fit for big wheels and special heavy gate.
The rank grade is C45 steel rods turning with one or two bearing. This will suffice for most installations.
Lower grade is by cast iron wheels are not recommended even if cheaper enough.
Now days for the heavy big gate cantilever wheels is very popular for heavy gate . which is use by some pulley block.
If you need quality and quite wheels you can choose a right steel wheels with rubber cover. For light gate you can use good nylon wheels with bearing inside.
Q:Choose galvanize or stainless steel wheel?
A:On usual the people use galvanized wheels,the galvanized wheel in two grade:96 hours salt test and 72 hours which is enough for sun and rain out side,48 hours not recommend.If you still need higher cover dealing you can use electric paint.
Only when you nearby sea you can choose SS304 or SS316,SS201 not recommend which is worse than galvanize
Q:Can we buy sliding gate wheels with Barrier Components?
A:We also sell galvanized wheels with bearing and axle lubrication points and this helps to complete our comprehensive range of sliding gate wheels.All weights quoted are based on each individual wheels,so if you want to buy sliding gate wheels you should contact with our team of experts today to ensure that you make an informed decision.
Q:Are you manufacture or trading company?
A:We are manufacture in NANTONG
Q:Can we visit your factory?
A:We are warmly welcome you to our factory,10 minutes from Qingtian stations by car.
Q:Can we get samples?
A:We offer free sample
Q:How can we get samples?
A:You offer your name card and pay for the express fee,we will send you in one day.
Q：What is your advantage?
A :1 Develop one new design in two years
2 Stock goods send in 7 day,OEM&ODM goods send in 30-45 days
3 Compensation for all problems goods.
