Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

3
2023-12-06

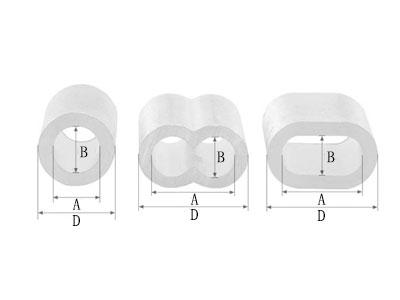

Reference(mm) Specification
 D A B Length
 Weight（100pcs)/g Applicable wire rope specifications
Round-hole aluminum sleeve
 Ø1.0
 3 1.2 1.2 5 / Outside diameter<1.0
Ø1.2
 3.5 1.5 1.5 5 9.1 Outside diameter<1.2
Ø1.5
 4 2 2 7 17 Outside diameter<1.5
Ø2.0
 5 2.5 2.5 8 31.2 Outside diameter<2.0
Ø2.5
 6 3 3 8 45.3 Outside diameter<2.5
Ø3.0
 8 3.5 3.5 8 79.1 Outside diameter<3.0
Ø4.0
 9 5 5 10.5 124.1 Outside diameter<4.0
Ø5.0
 10 6 6 12 181 Outside diameter<5.0
Ø6.0
 12 7 7 15 331 Outside diameter<6.0
Ø8.0
 14 9 9 22 527 Outside diameter<8.0
Ø10.0
 17 10 10 27 1041.5 Outside diameter<10.0
Double-hole aluminum sleeve
 Ø1.0
 5 3 2 8 / Outside diameter<1.0
Ø1.2
 6 4 2 9 24.7 Outside diameter<1.2
Ø1.5
 7.5 5 2.5 8 32.7 Outside diameter<1.5
Ø2.0
 9 6.5 3 10 41.2 Outside diameter<2.0
Ø2.5
 9.8 7 4 12 99 Outside diameter<2.5
Ø3.0
 12 8 4 13.5 212 Outside diameter<3.0
Ø4.0
 14 10 5 15 229 Outside diameter<4.0
Ø5.0
 17 12 6 19 469 Outside diameter<5.0
Ø6.0
 20 15 8 24.5 839 Outside diameter<6.0
Ø8.0
 24 18 9 29 1232 Outside diameter<8.0
Ø10.0
 29.5 23 11.5 30 1860 Outside diameter<10.0
Ø12.0
 36 28 14 35.5 3230 Outside diameter<12.0
Oval aluminium sleeve
 Ø0.5
 4 2.5 1.5 5 4.5 Outside diameter<0.5
Ø0.8
 5 3.5 2 6 7.1 Outside diameter<0.8
Ø1.0
 5 3.5 2 7 7.6 Outside diameter<1.0
Ø1.2
 6.5 5 2.5 7.5 11.1 Outside diameter<1.2
Ø1.5
 7.5 6 3 10 13 Outside diameter<1.5
Ø2.0
 8.5 7 3.5 11 23.7 Outside diameter<2.0
Ø2.5
 12 9 4.5 14 44.6 Outside diameter<2.5
Ø3.0
 15 11 5.5 18 59.8 Outside diameter<3.0
Ø4.0
 18 13 7 20 161.8 Outside diameter<4.0
Ø5.0
 24 18 9 27.5 343 Outside diameter<5.0
Ø6.0
 30 22 11 33 532 Outside diameter<6.0
Ø8.0
 36.5 26.5 13 39.5 1273 Outside diameter<8.0
Ø10.0
 42.5 31 15.5 45 2378 Outside diameter<10.0
