Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

6
2023-12-07

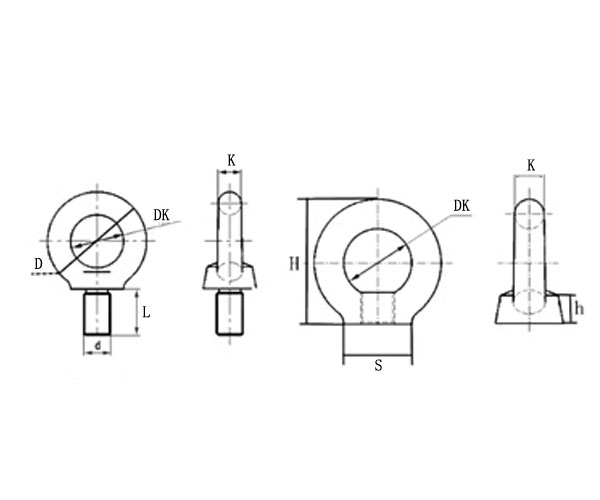

Reference(mm) L D dk k H h S The sling is heavy(g)
 d
M6-GB
 12.5 23.2 11.26 7.1 23.2 4.62 11.38 17.8 5.7
M8-GB
 14.3 35.45 19.85 8.75 36.6 7.8 18.18 48.2 7.65
M10-GB
 18.8 43.8 24.05 9.3 44.3 9.45 23.45 87.9 9.6
M12-GB
 22.9 50.2 27.45 10.2 50.9 10.1 27.15 132.1 13.6
M14-GB
 24.48 50.7 27.45 10.6 52 10.78 27.15 132.1 13.6
M16-GB
 26 59.95 32.7 14.2 62 12.45 31.45 29 7.55
M6 8.48 19.88 9.75 5.63 20.32 4.56 10 11 5.6
M8 13.4 28.3 15.32 7.48 30.04 6.73 14.45 29 7.55
M10 18.2 35.2 20.42 8.58 37.2 7.56 18 53 9.55
M12 22.22 43.95 24.35 8.78 44.2 8.21 21.2 83.3 11.6
M14 20.1 41.18 22.6 8.6 43.15 8 22.1 82.4 13.54
M16 26.1 47.7 26.26 9.6 51.7 10.8 25.6 133.8 15.74


Reference(mm)
 D dk k H h S The sling is heavy(g)
M6-GB
 30.45 16.9 7.23 33.65 9.15 17.15 30.6
M8-GB
 35.15 19.75 8.05 39.25 11.36 19.64 47
M10-GB
 44.18 24.72 9.88 49.12 14.12 23.92 91.8
M12-GB
 52.7 29.54 11.78 58.45 16.88 28.5 145.2
M14-GB
 52.6 29.45 12.9 58 17.13 28.55 157.7
M16-GB
 60.2 32.4 13.6 66.36 18.08 33.5 213.6
M6
 27.4 13.8 6.9 29.32 7.2 15.25 21
M8 32.12 18 8.5 34.48 8.3 18.5 33.2
M10 35.3 19.2 8.75 39 10.26 19.56 46.3
M12 42.45 24.3 8.7 47.76 13.4 22.06 62.9
M14 42.8 24.6 9.72 48 13.94 22.15 69.2
M16 53.2 31.1 11.95 57 13.38 28.6 138
