Stainless steel fittings for wire rope

Location：Home >Products>Stainless steel fittings for wire rope

9
2023-12-11

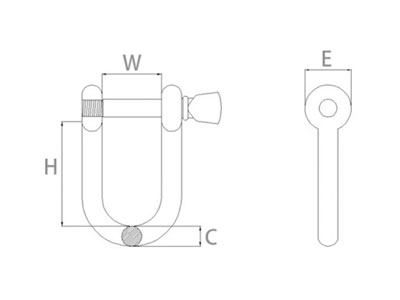

Reference(mm) D W M H C Maximum load-bearing(kg)
M4 7.5 8.1 3.2 16.5 3.8 60
M5 9.9 10.7 4.3 18.8 4.9 80
M6 11.7 13.1 5.2 21.5 5.7 100
M8 16.3 16.1 7.1 24.9 7.6 200
M10 20.5 19.9 8.6 32.8 9.5 320
M12 24.1 25.5 10.3 41.3 11.5 520
M14 26.5 29.2 12.1 44.4 13.6 700
M16 30.4 32.4 14.1 49.4 15.2 800
M18 35.3 38.6 15.5 61.9 17.5 950
M20 39.2 42.6 17.3 68.7 19.3 1100

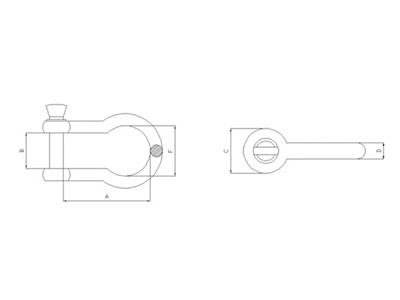

Reference(mm) A B C D F Maximum load-bearing(kg)
M4 16 9 8.5 3.9 12.5 100
M5 17.5 11.2 9.8 4.9 14.8 160
M6 23 12.8 11.5 5.6 21 220
M8 27 16 16.3 7.6 24.8 400
M10 35.4 22.5 18.8 9.6 29 640
M12 45 25 23.6 11.6 37 880
M14 57.9 29 27.5 13.5 43 1100
M16 61.5 34 31.6 15.5 54 1600
M20 80 40 39 19.6 64 2000
M22 86.5 45.5 43.5 21.9 72.7 3000
M25 92.4 50 48.4 24.5 73.9 4000
